Commercial Garage Doors
Do you need ribbed steel doors for robust security? How about polyurethane or polystyrene options for superior insulation and energy efficiency? Or what about gorgeous full-view aluminum doors for a sleek and modern aesthetic? Our team of experts understands the unique requirements of different industries throughout the Greater Cincinnati area and will work closely with you to find the perfect solution. No matter if you’re in manufacturing, warehousing, retail, or any other industry, we have the expertise to meet your specific needs. Trust PDQ Doors to deliver high-quality commercial garage doors that enhance the functionality and visual appeal of your business.
Types of Commercial Garage Doors
When it comes to commercial garage doors, there’s a wide range of options to suit different industries and businesses. Whether you’re running a warehouse, a manufacturing facility, an automotive shop, or any other type of commercial establishment, there’s a door that fits your specific needs. From sturdy steel doors to energy-efficient options, PDQ Doors can help you find the perfect match for your business. Each type of door offers unique features and benefits, designed to enhance security, functionality, and aesthetics. Here are the types of doors we offer.

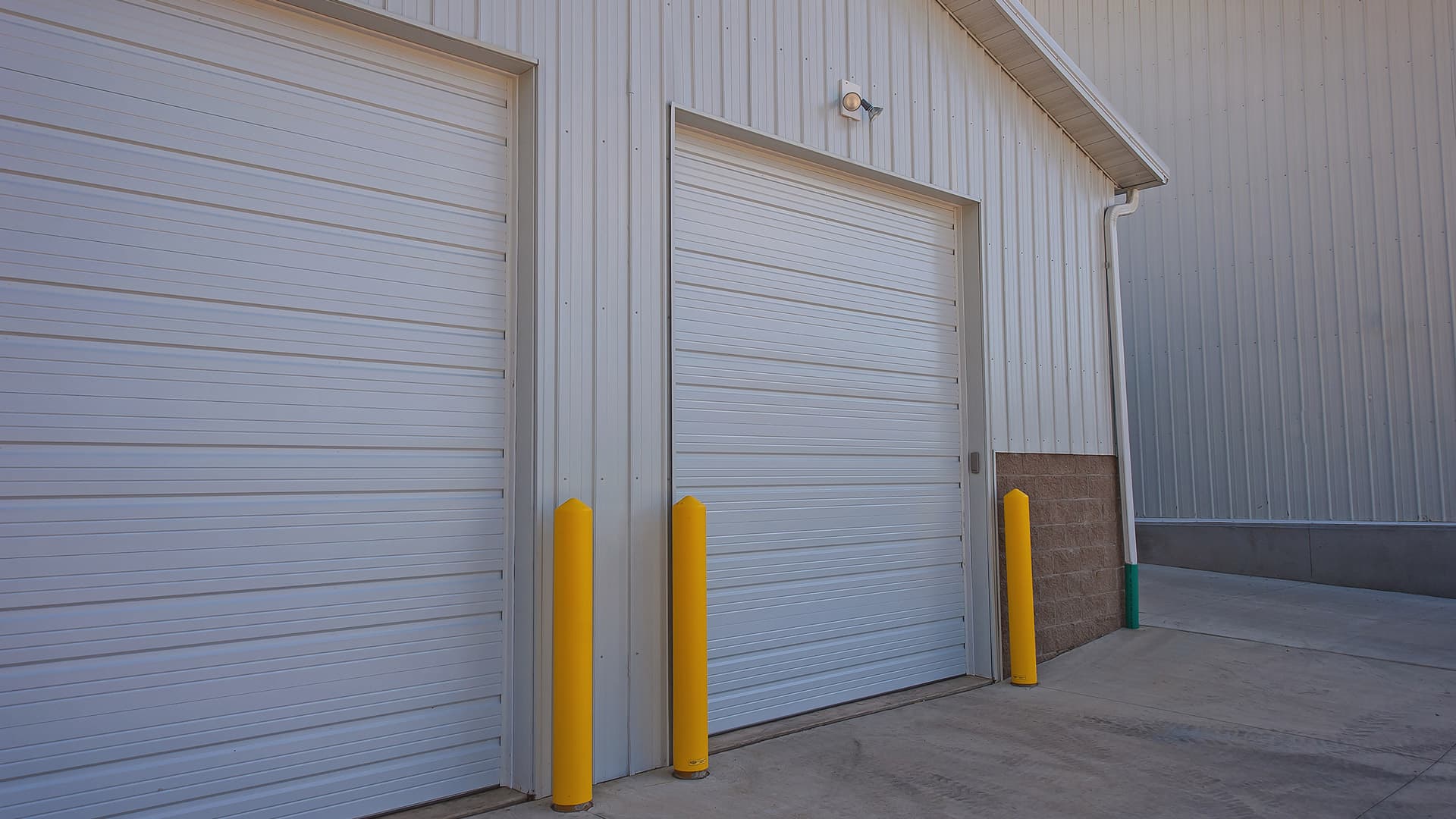

Ribbed Steel
Ribbed steel garage doors are a durable, secure, and visually appealing option for industries ranging from warehouses and manufacturing facilities to automotive dealerships and retail spaces. They offer a winning combination of functionality, aesthetics, and reliability to meet the needs of diverse commercial applications.
Specifications
- R-value: Uninsulated up to 8.0
- Thickness: 2″
- Insulation Type: Polystyrene
- Interior Material: N/A — 27 Gauge steel
- Extrerior Material: 20–25 Gauge steel
- Total Layers: 1–3 layers
- Construction: Steel — Steel + Insulation + Steel
- Available Colors*: White, Brown, Sandstone, or Gray
*All models are available in a finishing coat of white. Additional sandstone, brown and gray finishes are available in models 3240/41/42 only.
Models
- 3250: 25 Gauge, Uninsulated
- 3251: 25 Gauge, Insulated* w/ Vinyl Back
- 3252: 25 Gauge, Insulated* w/ Steel Back
- 3240: 24 Gauge, Uninsulated
- 3241: 24 Gauge, Insulated* w/ Vinyl Back
- 3242: 24 Gauge, Insulated* w/ Steel Back
- 3220: 20 Gauge, Uninsulated
- 3221: 20 Gauge, Insulated* w/ Vinyl Back
- 3222: 20 Gauge, Insulated* w/ Steel Back
*Insulated models R-Value: 8.0
Features
- 2″ thick sections constructed of pre-finished galvanized steel
- Insulated models feature either heavy-duty vinyl or 27-gauge steel backers
- The steel characteristics and thickness used in models 3250/3251/3252 are equivalent to the “nominal 24 gauge” classification used by other manufacturers in the door industry
- Box-shaped stiles are riveted to the face of the section and are galvanized for additional corrosion protection
- Tongue and groove meeting rails provide superior rail strength and weather resistance
- Glass is available in ⅛” DSB, ⅛” Lexan, Insulated or ¼” tempered glass
- Glass is easily replaced or substituted by removing molded frames
- Exhaust port is optional for bottom section
- Track options include 2″ or 3″ bracket or clip angle mount and designed to accommodate virtually any headroom design requirements
- Heavy-duty hardware may be specified with 11- or 14-gauge hinges and 10-ball rollers
- Bottom U-shaped astragal in an aluminum retainer is standard
- Increased windload requirements may be specified

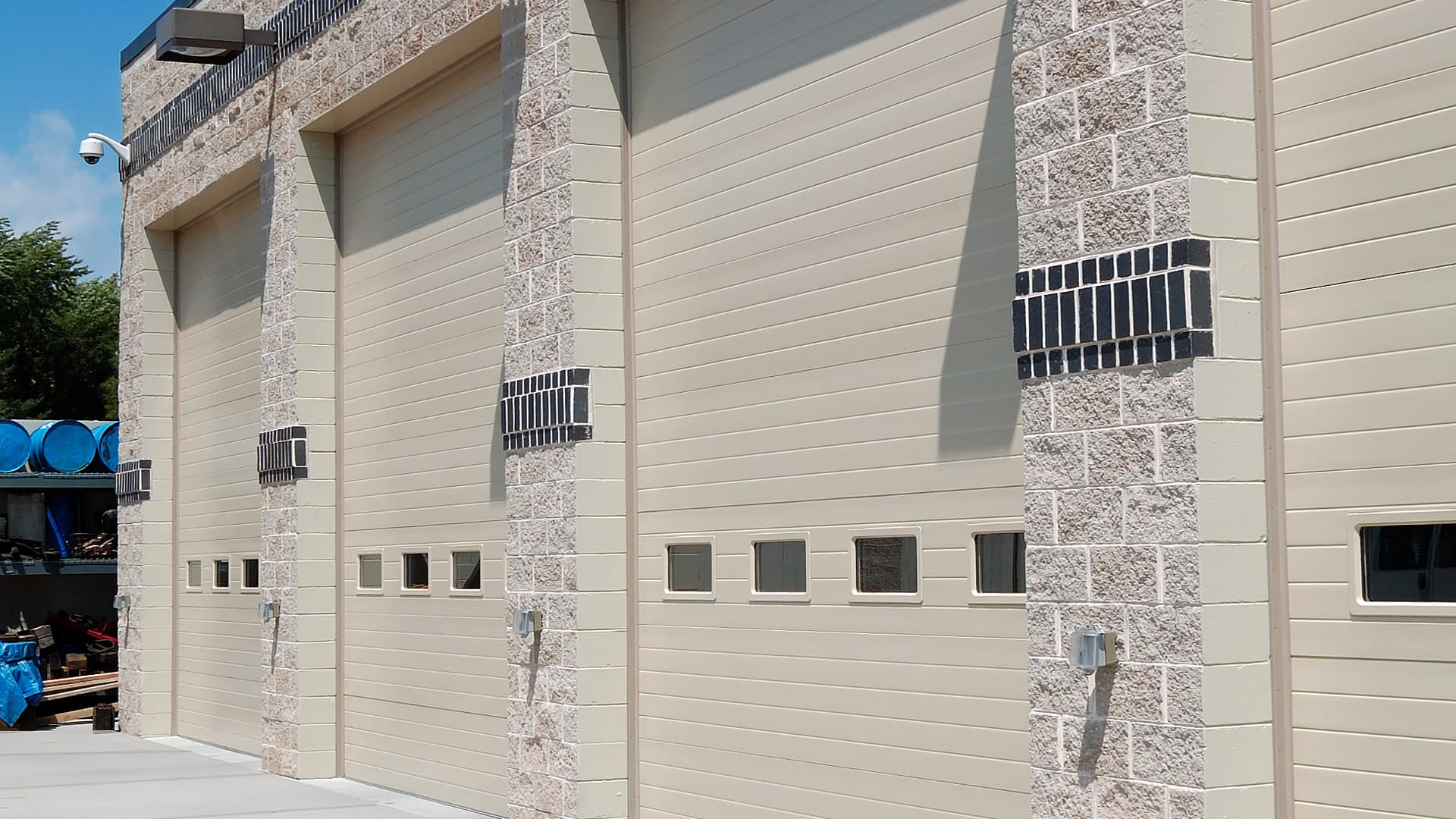

Polystyrene Sandwich
Polystyrene sandwich doors are an ideal choice for industries that require insulation, energy efficiency, durability, and noise reduction. From food processing plants and cold storage facilities to warehouses and manufacturing plants, these doors provide a reliable and efficient solution that meets the unique needs of a range of commercial applications.
Specifications
- R-value: 10.29
- Thickness: 2″
- Insulation Type: Polystyrene
- Interior Material: 27 Gauge steel
- Extrerior Material: 26 Gauge steel
- Total Layers: 3 layer
- Construction: Steel + Insulation + Steel
- Available Colors: White, Almond, Sandstone, or Brown
Models
- 3285: 27 Gauge, Insulated w/ Steel Back
Features
- 26 gauge face and 27 gauge back steel are mechanically locked and bonded to a CFC-free polystyrene core with urethane adhesive for maximum structural integrity
- Tongue and groove meeting rails provide superior joint strength and weather resistance
- Concealed hinge attachment plates run the full height of sections for superior strength
- Rigid exterior end stiles are finish-painted white
- Glass is available in ⅛” float, 7/16” insulated or ¼” tempered glass
- Glass is easily replaced or substituted by removing molded frames
- Exhaust port is optional for bottom section
- Track options include 2” or 3” bracket or clip angle mount and are designed to accommodate virtually any headroom design requirements.
- Track options include 2” or 3” bracket or clip angle mount and are designed toHeavy duty hardware may be specified with 11- or 14-gauge hinges and 10-ball rollers accommodate virtually any headroom design requirements.
- Increased windload requirements may be specified

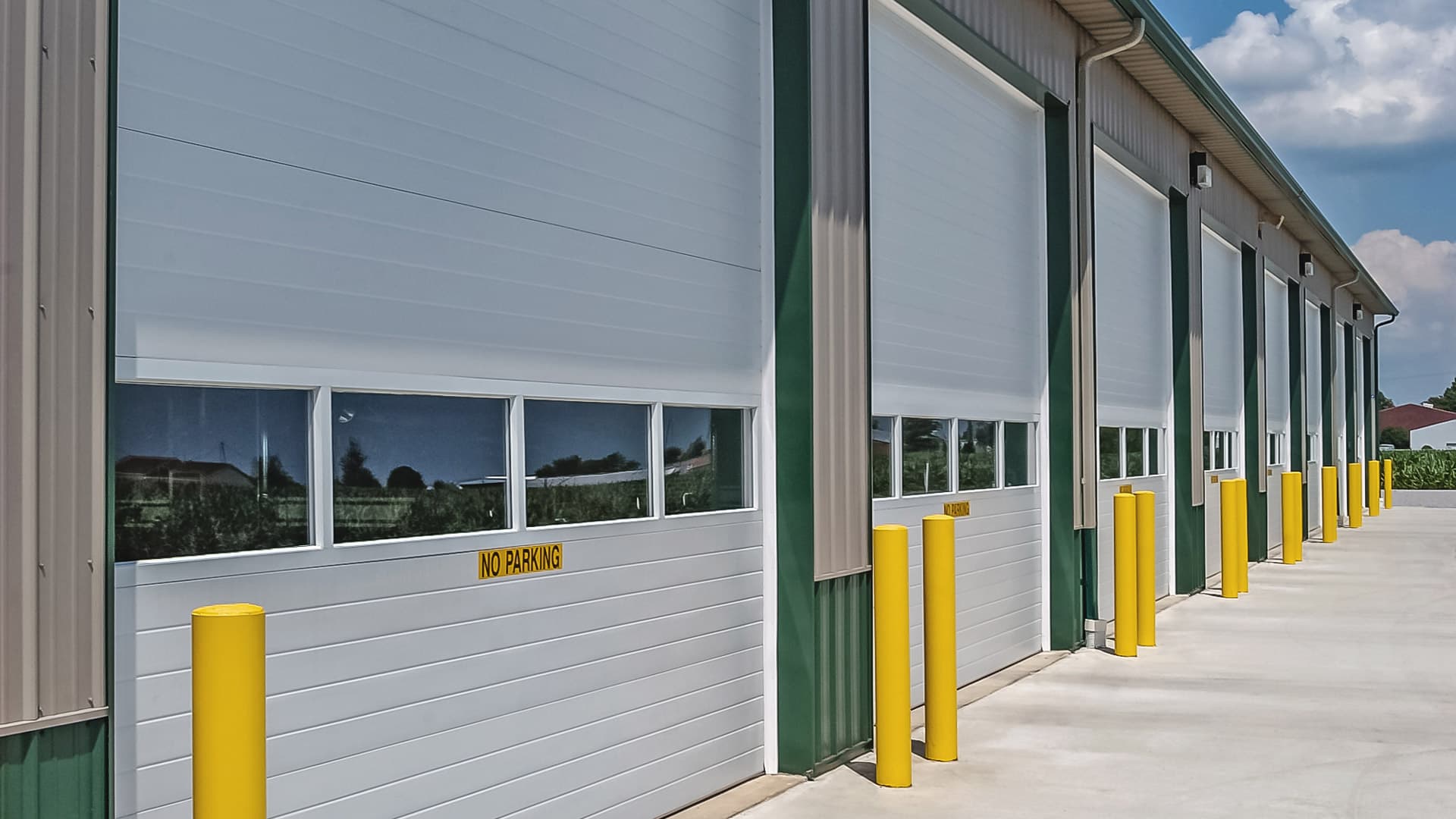

Polyurethane Thermal
Polyurethane thermal doors are utilized in industries that prioritize insulation, energy efficiency, and durability. From food storage facilities and pharmaceutical manufacturers to laboratories and manufacturing plants, these doors provide exceptional thermal performance, protect sensitive materials, and withstand the demands of several commercial applications.
Specifications
- R-value: 17.54
- Thickness: 2″
- Insulation Type: Polyurethane
- Interior Material: 27 Gauge steel
- Extrerior Material: 26 Gauge steel
- Total Layers: 3 layer
- Construction: Steel + Insulation + Steel
- Available Colors: White, Almond, Sandstone, or Brown
Models
- 3216: 27 Gauge, Insulated w/ Steel Back
Features
- Foamed-in-place CFC-free polyurethane core permanently bonds the 26 gauge face and 27 gauge back steel to form a rigid homogeneous section
- 2” thick sections are thermally broken to eliminate convection
- Tongue and groove meeting rails with joint gasketing provide superior joint strength and prevent air infiltration
- Concealed hinge attachment plates run the full height of sections for superior strength
- Rigid exterior end stiles are finish-painted white
- Glass is available in 7/16” insulated or ¼” tempered glass
- Glass is easily replaced or substituted by removing molded frames
- Exhaust port is optional for bottom section
- Track options include 2” or 3” bracket or clip angle mount and are designed to accommodate virtually any headroom design requirements.
- Heavy-duty hardware may be specified with 11- or 14-gauge hinges and 10-ball rollers
- Bottom U-shaped astragal is standard
- Increased windload requirements may be specified

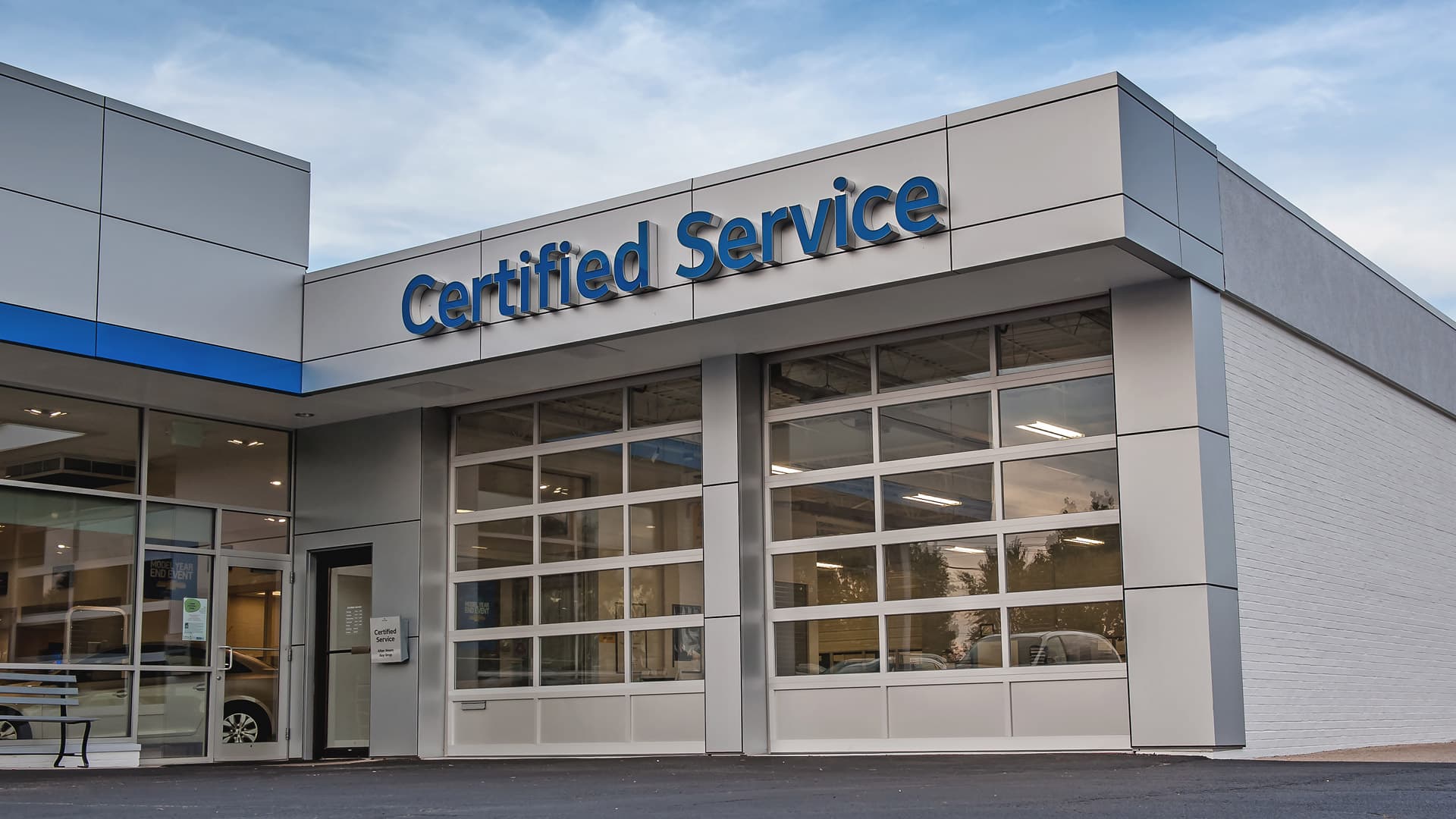

Aluminum Full-View
Aluminum full-view doors are an excellent choice for industries that value natural light, visibility, and a seamless indoor-outdoor connection. From showrooms and retail spaces to restaurants and event venues, these doors offer a combination of functionality, aesthetics, and security. Enhance your space with the beauty and versatility of aluminum full-view doors, creating an inviting atmosphere that leaves a lasting impression on your customers. Optional powder coating in a multitude of colors is available!
Specifications
- R-value: N/A
- Thickness: 2″
- Insulation Type: N/A
- Interior Material: Aluminum / Glass
- Extrerior Material: Aluminum / Glass
- Total Layers: 1 layer
- Construction: Aluminum + Glass
- Available Colors*: Clear Aluminum, White
*Optional powder coating available in a multitude of colors.
Models
- 3290
Features
- Stylish 2″ aluminum stiles with a tongue and groove rail frame construction provide a superior joint strength
- 4″ top and bottom rails and 2″ intermediate rails create additional perimeter strength
- Extrusions feature a closed construction for a rigid frame
- Available in clear anodized or white; optional powder coating available in a multitude of colors
- Hidden through-bolt assembly ensures maximum structural integrity
- Optional aluminum panels may be specified to create solid sections and are available as insulated or non-insulated
- Glass options are ⅛” plain, tinted or frosted (DSB), ⅛” (polycarbonate), ¼” (tempered), or 7/16” (insulated, tempered) glass
- ⅛” plain glass is standard
- Each full-view section utilizes white or black retainers
- Heavy-duty 14-gauge hinges offer stability and longer life
- Long-lasting 10-ball rollers assure consistent, efficient operation
- Bottom U-shaped astragal is standard
Panel Comparison
Designer Lites
All Designer Lites are either transparent or semi-transparent.
From sales to service, it's PDQ to the rescue!
Transform your commercial space with high-quality garage doors from PDQ Doors. Let us know your requirements and our experts will help guide you through the entire process. We understand that each business has unique needs when it comes to style, performance, and insulation. We’ll work closely with you to find the perfect commercial garage door solution that fits your budget and specifications. Call us today at 513-PDQ-DOORS or schedule your free estimate online.
