Overlay Cedar Carriage House Door
This Door Comes in 2 Models
Best:
Model # 5700
Model # 5700
Better:
Model # 5400
Model # 5400
Best:
Model # 5700
Model # 5700
- Model: 5700
- R-value: 18.03
- Insulation Type: Polyurethane
Overlay Cedar Carriage House Door
Classic style, delivered in a bold new way. C.H.I. Overhead Doors has always been one step ahead of the curve with the 5400 Series. Now the reengineered 5400 and 5700 Series take another step forward, utilizing Western Red Cedar boards to create a dynamic, yet timeless look that is backed by a rigid steel base section. Top it all off with a field staining and the decorative hardware and window options of your choice, and you have a door that says…welcome home.
Exterior Hardware
Technical Data
- The wide tongue-and-groove cedar boards and smooth cedar accent battens are laminated to the steel base sections with high performance adhesives. The door face is manufactured unfinished for field painting or staining.
- Square top standard; optional arched top
- Optional windows are available in clear glass, glue chip pattern or seeded glass, available in the top two sections of door
- Faux windows are an option with the background color always being black and can be combined with all window section options
- 2″ thick CFC free polyurethane insulated thermally-broken base sections
- 2-¾” total section thickness
- Wood-grained steel interior, pre-finished in white
- White painted 20-gauge end stiles are standard

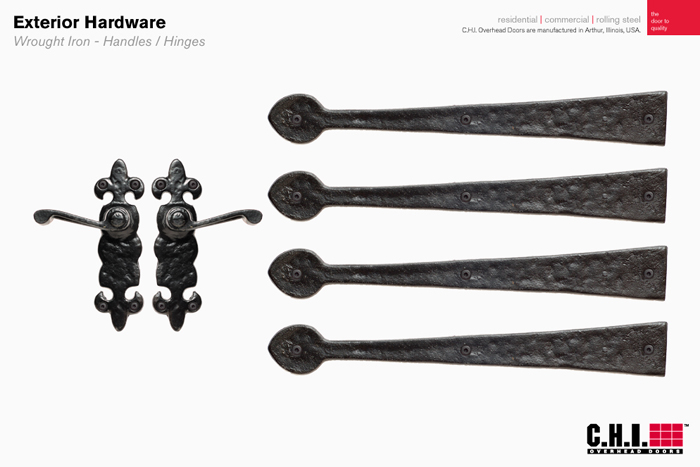

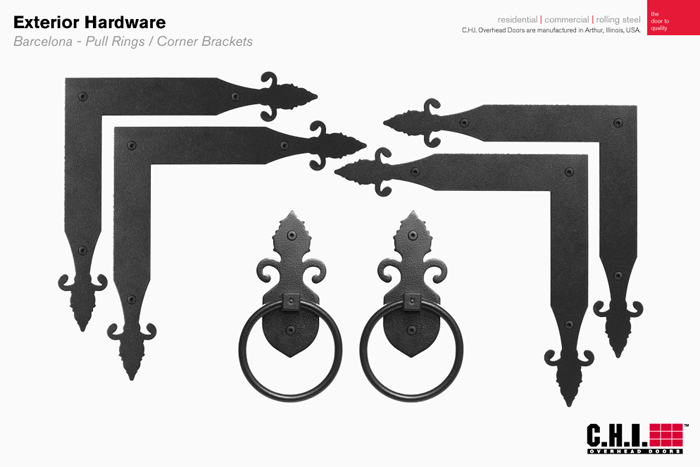

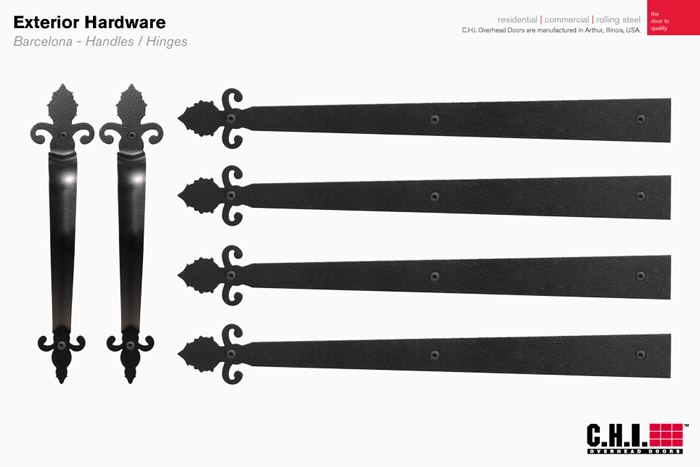

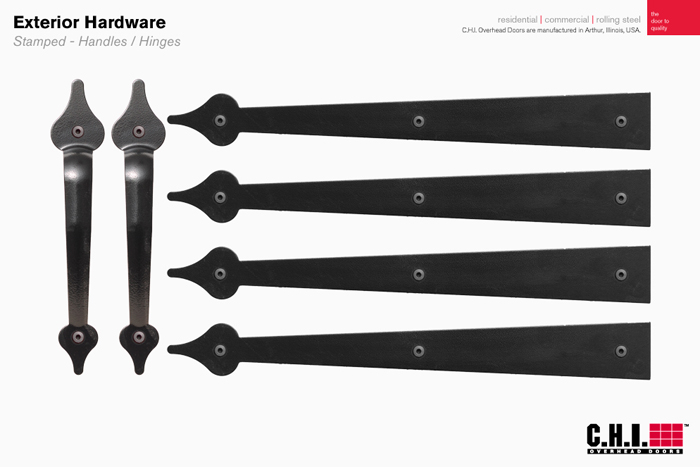

- One set of spade decorative hardware is standard for all doors. Optional Barcelona or Wrought Iron designs replicate an old-world look
- Concealed steel plates run continuously from top to bottom of each section for fastening hardware
- Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
Panel Comparison
Available Window Options
Designer Lites
All Designer Lites are either transparent or semi-transparent.
Better:
Model # 5400
Model # 5400
- Model: 5400
- R-value: 10.78
- Insulation Type: Polystyrene
Overlay Cedar Carriage House Door
Classic style, delivered in a bold new way. C.H.I. Overhead Doors has always been one step ahead of the curve with the 5400 Series. Now the reengineered 5400 and 5700 Series take another step forward, utilizing Western Red Cedar boards to create a dynamic, yet timeless look that is backed by a rigid steel base section. Top it all off with a field staining and the decorative hardware and window options of your choice, and you have a door that says…welcome home.
Exterior Hardware
Technical Data
- The wide tongue-and-groove cedar boards and smooth cedar accent battens are laminated to the steel base sections with high performance adhesives. The door face is manufactured unfinished for field painting or staining.
- Square top standard; optional arched top
- Optional windows are available in clear glass, glue chip pattern or seeded glass, available in the top two sections of door
- Faux windows are an option with the background color always being black and can be combined with all window section options
- 2″ thick CFC free polystyrene insulated base sections
- 2-¾” total section thickness
- Wood-grained steel interior, pre-finished in white
- White painted 20-gauge end stiles are standard
- One set of spade decorative hardware is standard for all doors. Optional Barcelona or Wrought Iron designs replicate an old-world look
- Concealed steel plates run continuously from top to bottom of each section for fastening hardware
- Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
Panel Comparison
Available Window Options
Designer Lites
All Designer Lites are either transparent or semi-transparent.
