Stamped Steel Short Panel Carriage House Door
This Door Comes in 4 Models
Model # 5216
Model # 5283
Model # 5241
Model # 5240
Model # 5216
- Model: 5216
- R-value: 16.55
- Insulation Type: Polyurethane
Stamped Steel Short Panel Carriage House Door
The 5216 model carriage house garage door combines the beauty of a traditional, wood carriage house door with the strength and durability of steel. A foamed in place process using CFC free polyurethane foam completely fills the core of this product, combining a high degree of structural integrity with an exceptional R-value rating. PVC extrusions at both section joints provide a thermal break by separating the front and back of the door.
Exterior Hardware
Technical Data
- 2″ door sections are formed from 26-gauge exterior galvanized draw quality steel
- CFC free high-density injected polyurethane core and is thermally-broken for added weather protection
- Extra-heavy paint system includes .25 mil. primer with rust inhibitor and a .75 coating of baked-on polyester paint, available in white, almond, brown or sandstone
- Accents wood tones available in cedar, mahogany, dark oak and light oak
- One set of spade decorative hardware is standard for all doors. Optional Barcelona or Wrought Iron designs replicate an old-world look
- Exterior decorative hardware includes 4 hinges, 2 handles and pop rivets for mounting to face
- Glazing options include standard glass and glue chip glass with numerous optional insert designs
- Concealed steel plates run continuously from top to bottom of each section for fastening hardware

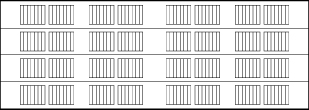

Panel Comparison
Available Window Options
Designer Lites
All Designer Lites are either transparent or semi-transparent.
Model # 5283
- Model: 5283
- R-value: 9.65
- Insulation Type: Polystyrene
Stamped Steel Short Panel Carriage House Door
Replicating the natural beauty of wood – the 5283 model carriage house garage door presents the visual distinction of wood carriage house doors while offering years of maintenance free service. The added benefits of a double-sided steel doors with CFC free polystyrene insulation will offer protection against the natural elements while adding structural integrity to the door. Available in three designer colors and numerous window designs, the 5283 or 5983 will provide direct architectual appeal and add value to your home for years to come.
Exterior Hardware
Technical Data
- Door sections are formed from 27-gauge exterior and 27-gauge interior galvanized draw quality steel
- Section joints are roll-formed into a tongue-and-groove design which produces a superior weather seal
- 1-13/16” CFC free polystyrene insulation, glued on both sides
- Extra-heavy paint system consists of .25 mil. primer with rust inhibitor and a .75 mil. coating of baked-on polyester paint in your choice of white, almond or sandstone
- Accents wood tones available in cedar, mahogany, dark oak and light oak
- Long-lasting rollers assure consistent, efficient operation
- Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
- Concealed steel plates run continuously from top to bottom of each section for fastening hardware
- Extension or torsion springs are individually computer-calibrated to lift your door
- Hinges are stamped from galvanized steel in a “wide body” pattern for greater stability and longer life
- Exterior decorative hardware includes 4 hinges, 2 handles and pop rivets for mounting to face
- Double sided steel doors are 2″ thick
Panel Comparison
Available Window Options
Designer Lites
All Designer Lites are either transparent or semi-transparent.
Model # 5241
- Model: 5241
- R-value: 7.94
- Insulation Type: Polystyrene
Stamped Steel Short Panel Carriage House Door
The 5241 Series Steel Carriage House Door is truly an innovative product. Not only is it the premier carriage house door to be constructed entirely of steel, but it has been designed to give you, the homeowner, an historically accurate re-creation of the traditional wood carriage house door. C.H.I.’s Steel Carriage House Door provides the maintenance-free durability of steel and a limited lifetime warranty for years of worry-free protection. And with a diverse collection of window, hardware and color options, you can be certain to find the door that will complement your home perfectly.
Exterior Hardware
Technical Data
- 2″ thick door sections offer the durability of tough 24-gauge draw quality steel in a pan-type product
- Includes 1-3/8” CFC free polystyrene insulation, with a vinyl back cover
- Extra-heavy paint system includes .25 mil. primer with rust inhibitor and a .75 coating of baked-on polyester paint, available in white, almond, sandstone or brown
- Exterior decorative hardware includes 4 hinges, 2 handles and pop rivets for mounting to face
- Glazing options include standard glass and glue chip glass with four optional insert designs
- Inside stiles are made of galvanized steel and stile holes are “dimpled” for increased holding power
Panel Comparison
Available Window Options
Designer Lites
All Designer Lites are either transparent or semi-transparent.
Model # 5240
- Model: 5240
- R-value: N/A
- Insulation Type: N/A
Stamped Steel Short Panel Carriage House Door
The 5240 model Steel Carriage House Door is truly an innovative product. Not only is it the premier carriage house door to be constructed entirely of steel, but it has been designed to give you, the homeowner, an historically accurate re-creation of the traditional wood carriage house door. C.H.I.’s Steel Carriage House Door provides the maintenance-free durability of steel and a limited lifetime warranty for years of worry-free protection. And with a diverse collection of window, hardware and color options, you can be certain to find the door that will complement your home perfectly.
Exterior Hardware
Technical Data
- 2″ thick door sections offer the durability of tough 24-gauge draw quality steel in a pan-type product
- Extra-heavy paint system includes .25 mil. primer with rust inhibitor and a .75 coating of baked-on polyester paint, available in white, almond, sandstone or brown
- Exterior decorative hardware includes 4 hinges, 2 handles and pop rivets for mounting to face
- Glazing options include standard glass and glue chip glass with four optional insert designs
- Inside stiles are made of galvanized steel and stile holes are “dimpled” for increased holding power
Panel Comparison
Available Window Options
Designer Lites
All Designer Lites are either transparent or semi-transparent.
